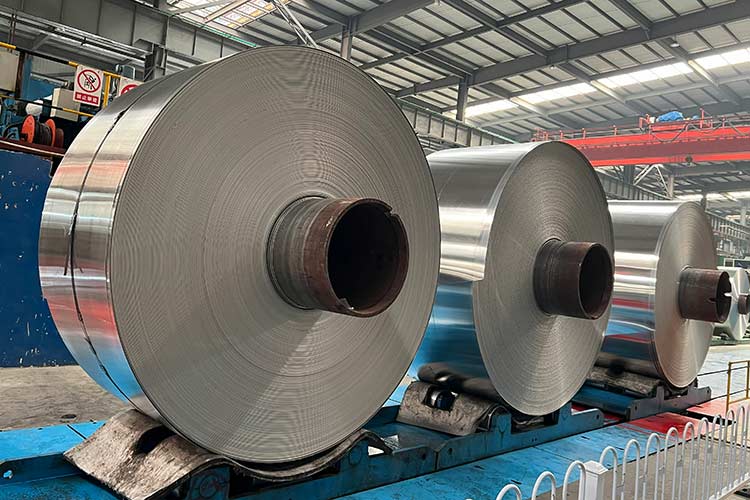

1060 aluminum coil belongs to the 1000 series of commercially pure aluminum, with an aluminum content of no less than 99.6%. It features excellent formability, good electrical and thermal conductivity, and outstanding corrosion resistance. Due to its superior processing performance, it is widely used in various industrial applications.
Description
Yutwin New Materials specializes in the production of aluminum coils and sheets in a wide range of alloys, grades, and specifications, offering stable quality, flexible customization, and reliable supply to meet the diverse needs of different industries.
Features
High Aluminum Purity
- Aluminum content ≥ 99.6%.
- Very low impurity levels, ensuring stable and consistent performance.
Excellent Corrosion Resistance
- Naturally forms a dense oxide film.
- Performs well in atmospheric, humid, and mildly corrosive environments.
- Suitable for outdoor and chemical-adjacent applications.
Outstanding Electrical & Thermal Conductivity
- Electrical conductivity of approximately 61–62% IACS.
- High thermal conductivity, ideal for heat transfer and dissipation applications.
Superior Formability
- Extremely soft and ductile, especially in O temper.
- Easy to bend, deep-draw, stamp, roll, and spin.
- Suitable for complex shapes and thin-gauge processing.
Good Surface Quality
- Smooth, uniform surface.
- Well suited for anodizing, coating, laminating, and polishing.
- Provides an excellent base material for decorative and functional finishes.
Low Density & Lightweight
- Density about 2.71 g/cm³.
- Helps reduce overall system weight while maintaining durability.
Weldability & Processability
- Excellent compatibility with TIG, MIG, and resistance welding.
- Easy to cut, slit, and process into sheets, coils, or strips.
Limitations
- Low mechanical strength compared with alloyed aluminum grades
- Not recommended for high-load or structural applications without reinforcement
Specifications
| Parameter | Description |
|---|---|
| Alloy | 1060 |
| Chemical Composition (%) | Al ≥ 99.6, Fe ≤ 0.35, Si ≤ 0.25, Cu ≤ 0.05, Mn ≤ 0.03, Mg ≤ 0.03, Zn ≤ 0.05, Ti ≤ 0.03, Others (each) ≤ 0.03, Others (total) ≤ 0.10 |
| Temper | O, H12, H14, H16, H18 |
| Thickness Range | 0.2 – 6.0 mm (customizable) |
| Width | Customizable (20 – 2000 mm) |
| Coil Weight | Customizable |
| Inner Diameter (ID) | 150 / 300 / 505 mm |
| Surface Finish | Mill Finish, Bright, Brushed, Coated, Film Laminated (optional) |
| Standard | ASTM B209 / EN AW-1060 / GB/T 3880 |
Common Aluminum Surface Treatments
Polishing
Polishing uses mechanical grinding, chemical, or electrochemical methods to improve the smoothness and brightness of aluminum surfaces. Polished aluminum features a high-gloss finish and excellent decorative appearance.
Brushing
Brushing is a surface treatment process that creates fine, directional textures on aluminum using abrasive belts or brushes. The brushed surface provides a refined metallic appearance while helping conceal minor scratches.
Coating
Coating applies a protective coating onto the aluminum surface through powder coating, liquid spraying, or other coating methods. It provides excellent weather resistance, corrosion protection, and a wide range of color options. Coated aluminum offers both decorative appeal and long-term durabilit.
Anodizing
Anodizing is an electrochemical process that forms a dense oxide layer on the aluminum surface, improving corrosion resistance, wear resistance, and surface hardness. The oxide layer can also be colored to achieve various finishes.
Sand Blasting
Sand blasting uses high-speed abrasive particles to impact the aluminum surface, creating a uniform matte texture. This process provides a soft metallic appearance, reduces fingerprint marks, and improves coating adhesion for subsequent finishing processes.
Embossing
Embossing is a process that forms raised or recessed patterns on aluminum surfaces through rolling or stamping. Common patterns include stucco, diamond, and wood grain textures. Embossed aluminum offers excellent decorative effects, scratch resistance, and certain anti-slip properties.
Applications
- Architectural decoration
Curtain walls, ceiling panels, decorative sheets.
- Electrical industry
Busbars, conductors, transformer components.
- Heat dissipation applications
Heat sinks, heat exchangers.
- Packaging materials
Containers, lids, packaging sheets.
- Industrial manufacturing
Stamping parts, sheet metal components, enclosures.
- Transportation and equipment
Signboards, reflectors, equipment housings.
