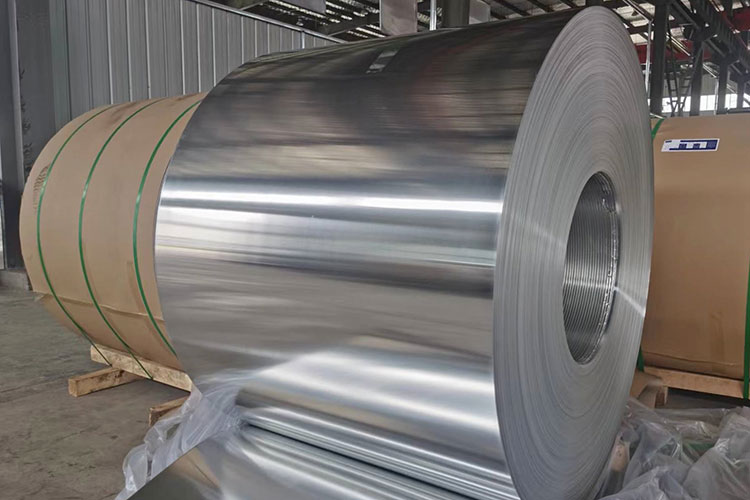

6022 aluminum coil is a heat-treatable aluminum alloy in the Al-Mg-Si (6xxx) series, widely used for automotive body panels. It is known for its excellent formability in the T4 temper and its strong paint-bake hardening response, which allows the material to achieve higher strength after the painting process. This makes 6022 aluminum sheet especially suitable for lightweight automotive exterior and interior panels.
Description
Yutwin New Materials specializes in the production of aluminum coils and sheets in a wide range of alloys, grades, and specifications, offering stable quality, flexible customization, and reliable supply to meet the diverse needs of different industries.
Features
- Magnesium–silicon aluminum alloy
Belongs to the 6000-series aluminum alloys, with Mg and Si as the primary alloying elements, designed for high strength and excellent surface quality.
- High mechanical strength
Offers higher strength than 6061 and 6063, suitable for automotive, structural, and high-load applications.
- Excellent corrosion resistance
Resistant to atmospheric and industrial corrosion, suitable for outdoor and automotive body panels.
- Good thermal conductivity
Supports heat dissipation in mechanical and structural components.
- Good formability and workability
Can be rolled, bent, stamped, and formed into complex profiles, making it ideal for automotive and industrial applications.
- Good weldability
Compatible with TIG and MIG welding, ensuring reliable joint performance.
- Smooth surface finish
Suitable for anodizing, coating, painting, and film lamination, providing both decorative and functional surfaces.
- Heat-treatable
Can be strengthened by solution heat treatment and artificial aging (T4/T6), offering flexibility for performance optimization.
Specifications
| Item | Specification |
|---|---|
| Alloy / Grade | 6022 |
| Chemical Composition (%) | Mg 0.25–0.60, Si 0.8–1.3, Fe ≤ 0.50, Cu ≤ 0.20, Mn ≤ 0.20, Cr ≤ 0.10, Zn ≤ 0.25, Ti ≤ 0.15, Al Balance |
| Series | 6000 Series (Al-Mg-Si) |
| Temper | T4, T6 |
| Thickness (mm) | 0.5 – 6.0 |
| Width (mm) | 600 – 2000 |
| Length (mm) | 1000 – 6000 (Customizable) |
| Surface Finish | Mill Finish, Pre-treated, Oiled |
| Standard | ASTM B209, EN 573, EN 485 |
Common Aluminum Surface Treatments
Polishing
Polishing uses mechanical grinding, chemical, or electrochemical methods to improve the smoothness and brightness of aluminum surfaces. Polished aluminum features a high-gloss finish and excellent decorative appearance.
Brushing
Brushing is a surface treatment process that creates fine, directional textures on aluminum using abrasive belts or brushes. The brushed surface provides a refined metallic appearance while helping conceal minor scratches.
Coating
Coating applies a protective coating onto the aluminum surface through powder coating, liquid spraying, or other coating methods. It provides excellent weather resistance, corrosion protection, and a wide range of color options. Coated aluminum offers both decorative appeal and long-term durabilit.
Anodizing
Anodizing is an electrochemical process that forms a dense oxide layer on the aluminum surface, improving corrosion resistance, wear resistance, and surface hardness. The oxide layer can also be colored to achieve various finishes.
Sand Blasting
Sand blasting uses high-speed abrasive particles to impact the aluminum surface, creating a uniform matte texture. This process provides a soft metallic appearance, reduces fingerprint marks, and improves coating adhesion for subsequent finishing processes.
Embossing
Embossing is a process that forms raised or recessed patterns on aluminum surfaces through rolling or stamping. Common patterns include stucco, diamond, and wood grain textures. Embossed aluminum offers excellent decorative effects, scratch resistance, and certain anti-slip properties.
Applications
- Automotive outer body panels.
- Doors, hoods, roofs, and trunk lids.
- Automotive structural and reinforcement panels.
- Lightweight vehicle body systems.
