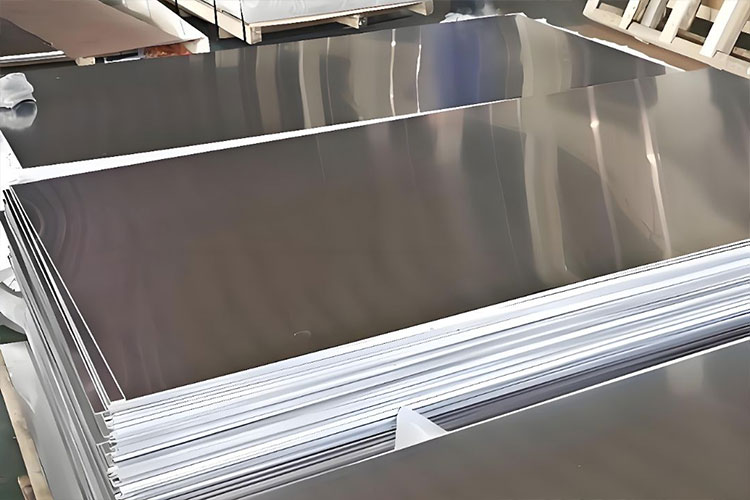

1060 aluminum sheet belongs to the 1000 series of industrial pure aluminum, with an aluminum content of not less than 99.60%. Compared with 1050 aluminum sheet, 1060 has higher purity and performs better in terms of electrical conductivity, thermal conductivity and corrosion resistance, making it an ideal choice for applications requiring high performance stability.
Description
Yutwin New Materials specializes in the production of aluminum sheets and coils in a wide range of alloys, grades, and specifications, offering stable quality, flexible customization, and reliable supply to meet the diverse needs of different industries.
Features
- High-purity aluminum (Al ≥ 99.5%)
Belongs to the 1000-series aluminum alloys, offering stable chemical composition and consistent material performance.
- Excellent corrosion resistance
Forms a natural and dense oxide layer, providing reliable resistance to atmospheric corrosion and humid environments.
- Good electrical and thermal conductivity
Suitable for applications requiring efficient electrical transmission and heat dissipation.
- Excellent formability and workability
Soft and ductile material, easy to process by bending, stamping, stretching, rolling, and deep drawing.
- Smooth and uniform surface quality
Provides an excellent base for anodizing, painting, coating, embossing, or film lamination.
- Good weldability
Compatible with common aluminum welding methods such as TIG and MIG, ensuring reliable joints.
- Lightweight material
Low density helps reduce overall weight while maintaining good durability.
Specifications
| Item | Specification |
|---|---|
| Alloy | 1050 |
| Chemical composition (%) | Al ≥ 99.5; Si ≤ 0.25; Fe ≤ 0.40; Cu ≤ 0.05; Mn ≤ 0.05; Mg ≤ 0.05; Zn ≤ 0.05; Ti ≤ 0.03; Others (each) ≤ 0.03; Others (total) ≤ 0.15 |
| Aluminum content | ≥ 99.5% |
| Temper | O, H12, H14, H16, H18, H22, H24 |
| Thickness range | 0.2 mm – 6.0 mm (custom available) |
| Width range | 500 mm – 2000 mm |
| Length | 1000 mm – 6000 mm (cut-to-length available) |
| Standards | ASTM B209 / EN 573 & EN 485 / JIS H4000 / GB/T 3880 |
| Surface finish | Mill finish, anodized, painted/coated, embossed, film laminated |
| Density | Approx. 2.71 g/cm³ |
| Tensile strength | O temper: 60–95 MPaH14: 85–120 MPa |
| Elongation | O temper: ≥ 25%H14: ≥ 10% |
| Flatness & tolerance | According to ASTM / EN standards |
Common Aluminum Surface Treatments
Polishing
Polishing uses mechanical grinding, chemical, or electrochemical methods to improve the smoothness and brightness of aluminum surfaces. Polished aluminum features a high-gloss finish and excellent decorative appearance.
Brushing
Brushing is a surface treatment process that creates fine, directional textures on aluminum using abrasive belts or brushes. The brushed surface provides a refined metallic appearance while helping conceal minor scratches.
Coating
Coating applies a protective coating onto the aluminum surface through powder coating, liquid spraying, or other coating methods. It provides excellent weather resistance, corrosion protection, and a wide range of color options. Coated aluminum offers both decorative appeal and long-term durabilit.
Anodizing
Anodizing is an electrochemical process that forms a dense oxide layer on the aluminum surface, improving corrosion resistance, wear resistance, and surface hardness. The oxide layer can also be colored to achieve various finishes.
Sand Blasting
Sand blasting uses high-speed abrasive particles to impact the aluminum surface, creating a uniform matte texture. This process provides a soft metallic appearance, reduces fingerprint marks, and improves coating adhesion for subsequent finishing processes.
Embossing
Embossing is a process that forms raised or recessed patterns on aluminum surfaces through rolling or stamping. Common patterns include stucco, diamond, and wood grain textures. Embossed aluminum offers excellent decorative effects, scratch resistance, and certain anti-slip properties.
Typical Applications
- Architectural and building applications
Used for roofing, wall cladding, ceiling panels, decorative sheets, and interior panels due to good corrosion resistance and surface quality.
- Electrical applications
Suitable for electrical bus bars, conductor plates, transformer components, and electrical enclosures because of good electrical conductivity.
- Heat transfer and thermal applications
Applied in heat exchangers, heat shields, insulation panels, and thermal protection components.
- Chemical and industrial equipment
Used for tanks, liners, covers, containers, and protective panels in mild chemical environments.
- Signage and decorative products
Commonly used for nameplates, signboards, reflectors, advertising panels, and decorative surfaces after anodizing or coating.
- General fabrication and forming
Suitable for stamping, bending, deep drawing, and forming of non-structural and lightweight components.
