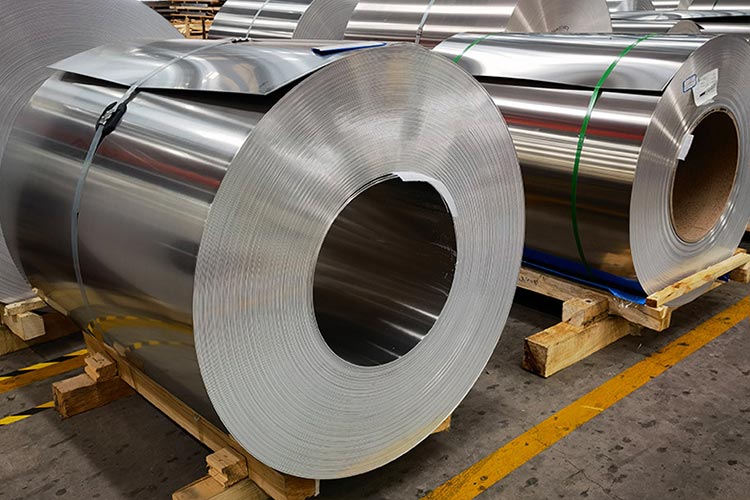

6101 aluminum coil is a heat-treatable aluminum alloy belonging to the Al-Mg-Si (6xxx) series, specially designed for electrical applications. It combines good mechanical strength with excellent electrical conductivity, making it an ideal choice for power transmission and electrical equipment where both conductivity and structural performance are required.
Description
Yutwin New Materials specializes in the production of aluminum coils and sheets in a wide range of alloys, grades, and specifications, offering stable quality, flexible customization, and reliable supply to meet the diverse needs of different industries.
Features
- Magnesium–silicon aluminum alloy
Belongs to the 6000-series aluminum alloys, with Mg and Si as main alloying elements, optimized for electrical and structural applications.
- Excellent electrical conductivity
Higher electrical conductivity than typical 6xxx-series alloys, suitable for electrical conductors such as bus bars and cables.
- Moderate mechanical strength
Provides a balance between strength and ductility, suitable for applications requiring both load-bearing capacity and electrical performance.
- Good corrosion resistance
Performs well in atmospheric and mildly corrosive environments, suitable for outdoor electrical applications.
- Good thermal conductivity
Efficient heat dissipation supports electrical and thermal management components.
Good machinability and workability
Can be easily rolled, bent, stamped, and processed into complex shapes, supporting high-speed production.
- Good weldability
Compatible with TIG and MIG welding, ensuring reliable fabrication of components.
- Smooth surface quality
Suitable for anodizing, coating, and film lamination, meeting both functional and decorative requirements.
Specifications
| Item | Specification |
|---|---|
| Alloy / Grade | 6101 |
| Chemical Composition (%) | Mg 0.35–0.80, Si 0.30–0.70, Fe ≤ 0.50, Cu ≤ 0.10, Mn ≤ 0.03, Zn ≤ 0.10, Ti ≤ 0.10, Al Balance |
| Series | 6000 Series (Al-Mg-Si) |
| Temper | O, T4, T6 |
| Thickness (mm) | 0.5 – 150 |
| Width (mm) | 100 – 2600 |
| Length (mm) | 1000 – 12000 (Customizable) |
| Surface Finish | Mill Finish, Anodized (Optional) |
| Standard | ASTM B209, EN 573, GB/T 3880 |
Common Aluminum Surface Treatments
Polishing
Polishing uses mechanical grinding, chemical, or electrochemical methods to improve the smoothness and brightness of aluminum surfaces. Polished aluminum features a high-gloss finish and excellent decorative appearance.
Brushing
Brushing is a surface treatment process that creates fine, directional textures on aluminum using abrasive belts or brushes. The brushed surface provides a refined metallic appearance while helping conceal minor scratches.
Coating
Coating applies a protective coating onto the aluminum surface through powder coating, liquid spraying, or other coating methods. It provides excellent weather resistance, corrosion protection, and a wide range of color options. Coated aluminum offers both decorative appeal and long-term durabilit.
Anodizing
Anodizing is an electrochemical process that forms a dense oxide layer on the aluminum surface, improving corrosion resistance, wear resistance, and surface hardness. The oxide layer can also be colored to achieve various finishes.
Sand Blasting
Sand blasting uses high-speed abrasive particles to impact the aluminum surface, creating a uniform matte texture. This process provides a soft metallic appearance, reduces fingerprint marks, and improves coating adhesion for subsequent finishing processes.
Embossing
Embossing is a process that forms raised or recessed patterns on aluminum surfaces through rolling or stamping. Common patterns include stucco, diamond, and wood grain textures. Embossed aluminum offers excellent decorative effects, scratch resistance, and certain anti-slip properties.
Applications
- Electrical busbars and conductors.
- Power distribution equipment.
- Transformer and switchgear components.
- Electrical enclosures and panels.
- Industrial electrical systems.
