Available in customized embossing patterns, alloy grades, thicknesses, widths, and surface finishes, Yutwin provides reliable aluminium foil solutions that enhance product performance and appearance.

Significant Advantages Offered by Embossed Patterns

• Non-stick and Easy-release

The textured surface reduces the contact area, preventing the sticking issues common with smooth aluminum foil at high temperatures, thereby facilitating smoother baking and packaging processes.

• Slip-resistant and Wear-resistant

Enhanced surface friction prevents slipping during handling and packaging, while also offering scratch resistance.

• Enhanced Mechanical Strength

The texture creates micro-reinforcing ribs, improving tear resistance and rigidity, and ensuring durability against repeated folding.

• Improved Lamination Adhesion

Increased surface area ensures stronger bonding with paper, PE film, and rock wool.

• Tunable Optical and Thermal Properties

The textured structure modulates light reflection and heat dissipation, offering superior thermal insulation compared to smooth foil.

Specifications

Item	Specification
Alloy	1235, 3003, 1050, 1060, 8011
Temper	O, H14, H18, H22, H24
Thickness	0.006 – 0.2
Width	10 mm – 1600 mm
Core ID	76 mm / 152 mm, customized sizes available
Surface Finish	Bright finish / Matte finish / Embossed surface / Epoxy coating / Color coating / Oil-resistant coating / Hydrophilic coating
Standards	ASTM / EN / JIS / GB / ISO

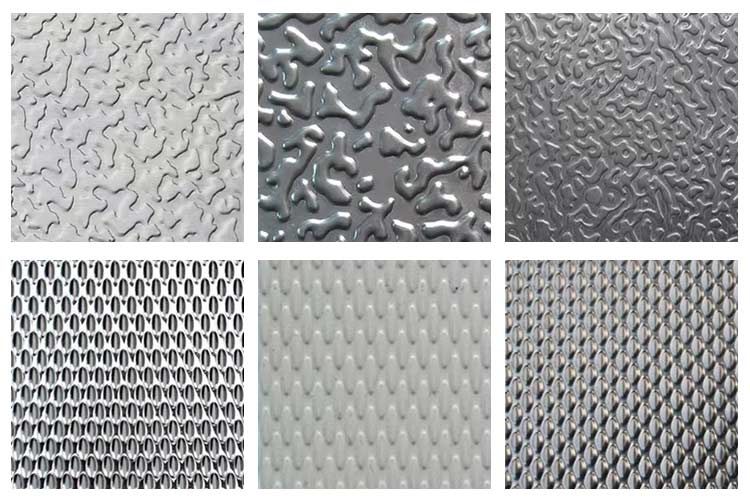

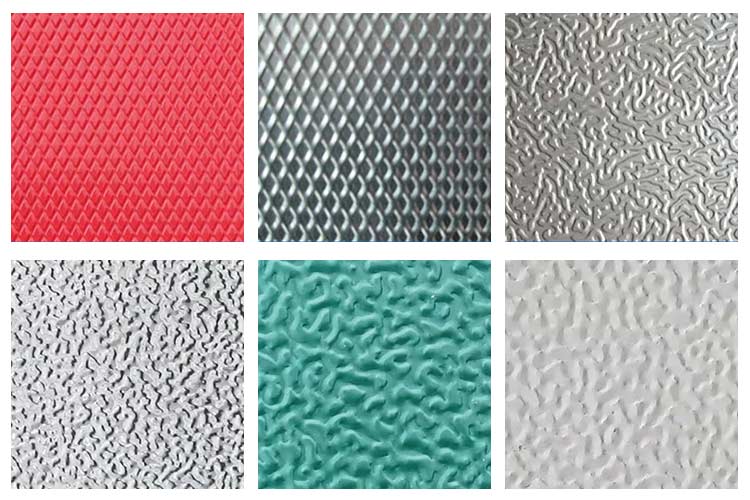

Embossing Patterns	Diamond pattern, orange peel pattern, corrugated pattern, floral/checkered pattern, customized logo embossing

Common Parameters

Thickness (mm)	Width (mm)	Alloy	Temper	Pattern	Surface Finish / Coating	Standard	Typical Roll Length (m)
0.009	300	8011	O	Diamond / Orange Peel	Bare / Matte	±0.001 mm	2000
0.015	450	8011 / 1235	O / H14	Orange Peel	Bare / Oil-coated	±0.002 mm	1500
0.025	600	8011	O / H18	Diamond	Bare / Color coat	±0.003 mm	1000
0.05	800	1235 / 3003	O / H18	Corrugated / Orange Peel	Bare / Painted	±0.005 mm	500
0.07	1000	3003 / 8011	O / H22	Stucco / Tread	Bare / Coated	±0.007 mm	300
0.10	1200	3003 / 1050	H18 / H22	Tread / Diamond	Color-coated / Epoxy	±0.010 mm	200
0.15	1450	1050 / 1060	H22 / H24	Orange Peel / Stucco	Color coat / Anodized	±0.015 mm	150
0.20	1500	1060 / 3003	H24	Diamond / Tread	Pre-painted / Powder coat	±0.020 mm	100
0.25	1500	1060 / 3003	H24 / H18	Stucco / Custom logo	Painted / Coated	±0.025 mm	80
0.30	1500	1060 / 3003	H24 / H18	Diamond / Tread	Coated / Anodized	±0.030 mm	50

Applications of Embossed Aluminium Foil

Embossed aluminium foil is widely used across various industries due to its combination of functional performance and decorative appearance. The embossing process improves the foil’s rigidity, strength, surface texture, and visual appeal, making it suitable for a wide range of applications.

Thermal Insulation and Heat Reflection

• Building insulation systems
• Underfloor heating systems
• HVAC duct insulation
• Roof reflective insulation layers

Packaging Applications

• Food packaging
• Chocolate and confectionery packaging
• Tobacco packaging
• Cosmetic packaging

Decorative Materials

• Wall panels
• Ceiling tiles
• Interior decoration materials

Industrial Laminates and Composite Materials

• Laminated paper
• Composite films
• Insulation products

Electronics and Electrical Applications

• Heat dissipation materials
• Electromagnetic shielding components
• Electrical and electronic equipment protection
• Household and Craft Applications

Other Applications

• Handicrafts
• Embossing artwork
• Decorative foil rolls
